DZ Slim luxury double wall drawer

→ Soft close concealed full extension drawer
→ Finish color: gray, white or various colors available
→ Dynamic load capacity: 35kg
→ Provide 3 height options, 63mm、101mm、148mm respectively
→ According to the style of home decoration, you can choose to draw inside or outside
→ Tool-free quick installation
→ Quiet systemcan guarantee the slides run smoothly without noise
→ 6-way adjustment: ±2mm up and down, ±1.5mm left and right, front panel tilt adjustment
→ Soft-closing function make the drawer close safely without effect of weight
→ length: 270-550mm
→ For the panel without handle, can choose the N3R concealed silide with built-in push-open function

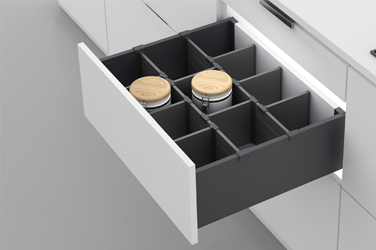

Divider Of Slim Luxury Double Wall Drawer

→ Finish color: gray, white or as required
→ Material: aluminum
→ Surface finish of aluminum is powder oated
→ Aluminum profiles can be cut as required,Max length is 2000mm

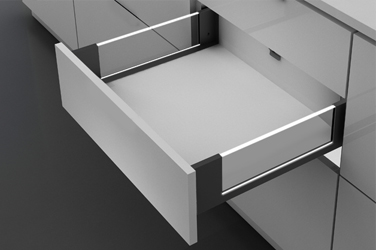

CBZ Slim Luxury Double Wall Drawer With Led Light

→ Soft close concealed full extension drawer
→ Finish color: gray, white, black or various colors available
→ Dynamic load capacity: 35kg
→ Provide 4 height options, 84mm、116mm、167mm、respectively
→ According to the style of home decoration, you can choose to draw inside or outside
→ Tool-free quick installation
→ Quiet system can guarantee the slides run smoothly without noise
→ 6-way adjustment: ±2mm up and down, ±1.5mm left and right, front panel tilt adjustment
→ Soft-closing function make the drawer close safely without effect of weight
→ Length: 300-550mm
→ For the panel without handle, can choose the CBZFT concealed silide with built-in push-open function
→ Side panel optional without lighting system

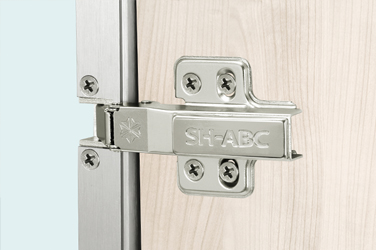

LM05 Two way micro angle soft-closing aluminum frame indivisible hinge

→ Opening Angle：100°
→ Drilling dimension on aluminum frame hinge head：28mm
→ Material：cold rolled steel,nickel plated
→ Range of door thickness：19-23mm

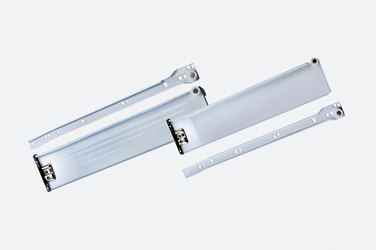

BM604 Metal Box

→ Metal panels+Cabinet Profiles(Left+Right)present quick-fix and cost less
→ Front braskets with 2 way adjustment
→ Epoxy coated in white,almond,brown,black,grey
→ Thickness：1.2mm
→ H=86mm H=118mm H=150mm, Available height

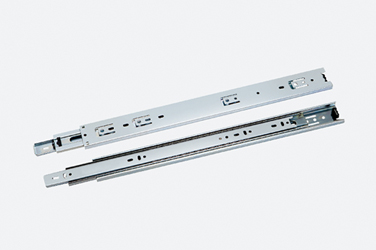

SH4615 Heavy-duty full extension ball bearing slide

→ Full-extension, full extension
→ Width：46.5mm
→ Dynamic load capacity：68kg
→ Finish：electrophoresis,plating
→ Material：cold rolled steel
→ Thickness of material(I//M/O)part：1.5*1.5*1.5mm

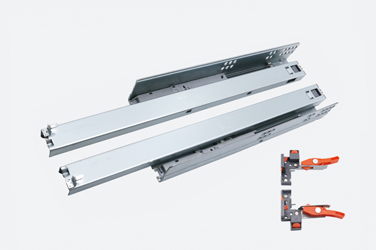

N3R1C-T Push-open concealed full extension slide

→ Push-open concealed full extension slide
→ Dynamic load capacity: 35kg
→ Material:galvanized steel
→ Material thickness:1.0*1.5*1.8mm
→ Tool-free quick installation
→ 6-way adjustment, 0~3mm highly, ±2mm left and right , 0~4mm before and after
→ 2mm space required for the push to open, Press the drawer in any position to open and close it.

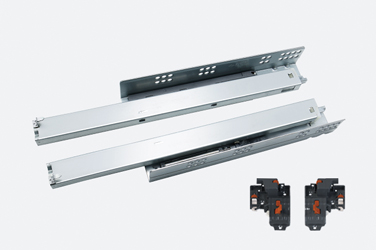

K3F1 Soft-closing Concealed Full Extension Slide

→ Concealed,full extension,quiet movement
→ Dynamic load capacity: 35kg
→ Material: galvanized steel
→ Material thickness: 1.0*1.5*1.8mm
→ Tool-free quick installation
→ Quiet system guarantees the slides run smoothly without noise
→ 6-way adjustment, 0~3mm highly, ±2mm left and right , 0~4mm before and after
→ Soft-closing function make the drawer close safely without effect of weight

M05 Two way micro angle soft-closing indivisible hinge

→ Opening Angle：100°
→ Depth of hinge cup：10.5mm
→ Drilling distance dimension of panel：3-7mm
→ Diameter of hinge cup：35mm
→ Material：cold rolled steel,nickel plated or stainless steel
→ Range of door thickness：14-20mm

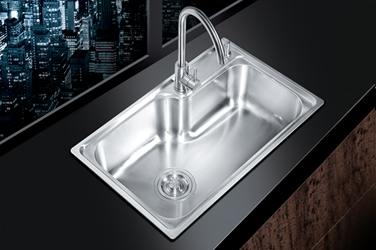

SHS7246LS Tensile sink

External dimension: 720×460×220mm
Cut out size :690×440mm
Bottom hole size: 690×420mm(R30)
Finish: Satin
Material: SUS304 stainless steel
Standard accessories: SHS002B faucet, launching, asphalt basket

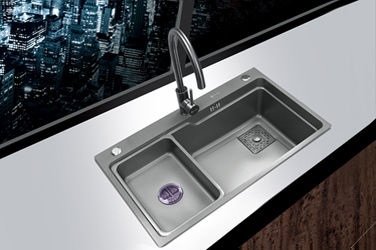

SHS7545NQH Nanoparticles gray manual sink

Overall dimension: 750×450mm
Table opening size: 720×420mm
Finish: Nanoparticles gray
Material: SUS304 stainless steel
Standard accessories: launching, asphalt basket

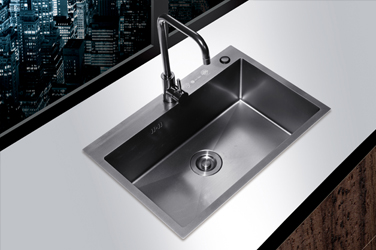

SHN6845H Nanoparticles black diamond manual sink

Overall dimension: 680×450mm
Table opening size: 650×430mm
Bottom hole size:630×415mm(R10)
Finish: Nanoparticles
Material: SUS304 stainless steel
Standard accessories: Nanoparticles faucet, launching, asphalt basket

SHS007A Kitchen faucet

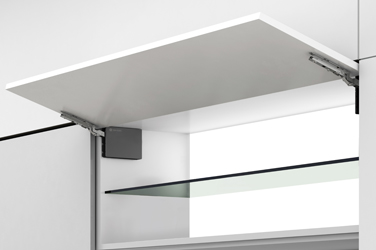

HK Lifting Systems

→ Stops at any angle once the door opens at 52°±7°
→ Door plate at 40°±15° automatically
→ Door height：250-650mm
→ Cabinet width：≤1200mm
→ Cabinet minimum depth：200mm
→ Tool-free assembly
→ Open and close gently, with double buffering function
→ Panel position can be adjusted in three dimensions
→ When the support torque range of two models overlaps, select the model with the larger support torque

Aluminum double-deck basket

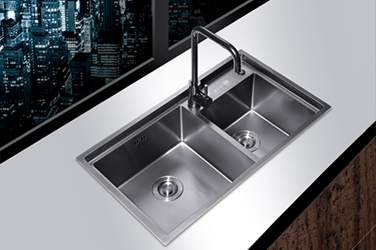

SHN8045H Nanoparticles black diamond manual sink

Overall dimension: 800×450mm
Table opening size: 770×420mm
Bottom hole size:750×400mm(R10)
Finish: Nanoparticles
Material: SUS304 stainless steel
Standard accessories: Nanoparticles faucet, launching, asphalt basket

Aluminum narrow seasoning basket

SHS7848LS Tensile sink

Overall dimension: 780×480×220mm
Table opening size: 750×450mm
Finish: Satin
Material: SUS304 stainless steel
Standard accessories: SHS002B faucet, launching, asphalt basket

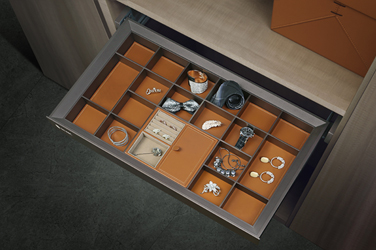

Jewelry storage box

→ The combination of dark brown and light brown, refined craftsmanship exquisite your life;
→ High-end high-quality leather, hand-stitched, space golden section, clever layout;
→ High-quality magnesium-aluminum alloy, new design frame, extremely simple and lightly luxurious;
→ The surface is finely strengthened, with great texture, fashion and beauty;
→ Equipped with SACA high-end damping slide rail, the sliding is smooth and quiet, and the installation is quick.

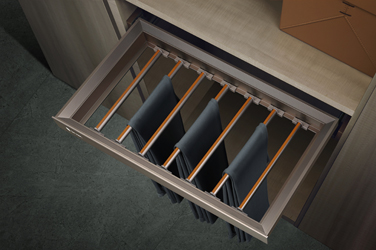

Soft closing trousers rack

→ The surface of all aluminum tubes is frosted, anti-skid and wrinkle resistant;
→ Simple streamline design, iron gray frosting treatment of the main frame;
→ The damping guide rail is equipped with guide rail cover, which is silent, smooth, practical and higher grade;
→ Ultra fast installation mode to reduce installation time and steps.

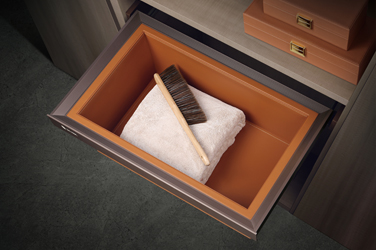

Clothes storage basket

→ The combination of dark brown and light brown, refined workmanship and make your life better;
→ High-quality leather, hand-stitched, basket widening and deepening, more space of collection;
→ High-quality magnesium aluminum alloy, the new design of frame is minimal luxury;
→ Good surface reinforcement treatment, extremely textured, stylish and beautiful;
→ With SACA good quality soft-closing slide, push and pull smoothly and no noise, quickly installation

Underwear storage basket

→ The combination of dark brown and light brown, refined workmanship and make your life better;
→ High-quality leather, hand-stitched, organize your life by category;
→ High-quality magnesium aluminum alloy, the new design of frame is minimal luxury;
→ Good surface reinforcement treatment, extremely textured, stylish and beautiful;
→ With SACA good quality soft-closing slide, push and pull smoothly and no noise, quickly installation

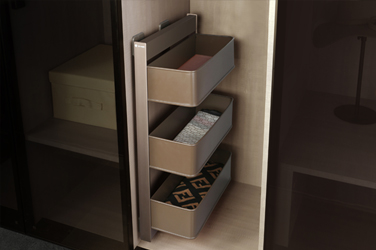

Side storage basket

→ The combination of dark brown and Hermes orange, refined craftsmanship exquisite your life;
→ High-quality leather and High-quality magnesium aluminum alloy combination; New design, fashion,simple and luxury.
→ With SACA high-end soft-closing slide, push and pull smoothly and no noise, quickly installation

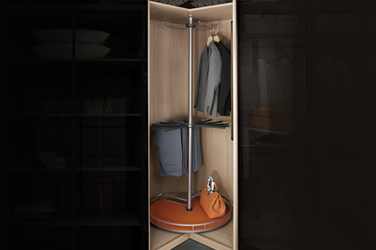

Three layers corner clothes basket

→ Designed for corner cabinet with 3 layers;
→ 360 degree rotating;
→ Easy mounting, convenient using;
→ Thicker tube takes stable and safe using;
→ Ergonomic design , upper for clothes, middle for trousers, bottom for shoes and bags;
→ Top level with 13 balls rotating hanger, middle level rack with anti-slip function, bottom level with luxury leather basket.

Trinket box

→ Full leather jewelry box selected high-grade wear-resistant leather materials hand-made;
→ Simple European streamline design, main frame iron ash frosting treatment;
→ The frame can be telescopic about 50mm, convenient to adjust and install the non-standard cabinet;
→ Damping guide rail supporting the guide rail cover, quiet smooth and practical more high-grade;
→ Super fast installation, reducing installation time and steps.

Clothing rattan basket

→ Wicker clothing basket selected environmental protection materials manual system, deepen the basket more convenient storage clothing, breathable and mildew proof;
→ Simple European streamline design, main frame iron ash scrub treatment;
→ The frame can be telescopic about 50mm, convenient non-standard cabinet body adjustment installation;
→ Soft-closing slide with cover, quiet smooth and practical more high-grade;
→ Quickly installation, reducing installation time and steps.

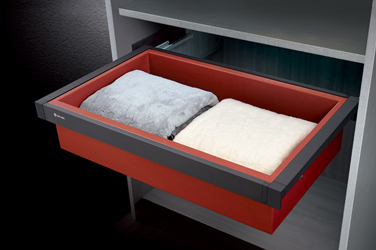

Clothing rattan basket

→ Full leather clothing basket selected high-grade wear - resistant leather hand-made, Deepen leather basket is more convenient to store clothes;
→ Simple European streamline design, main frame iron ash frosting treatment;
→ The frame can be telescopic about 50mm, convenient to adjust and install the non-standard cabinet;
→ Soft-closing slide with cover, quiet smooth and practical more high-grade;
→ Quickly installation, reducing installation time and steps.
